Knipex 9" StepCut® XL Cable Shears

Knipex 9" StepCut® XL Cable Shears

• High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears
• Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

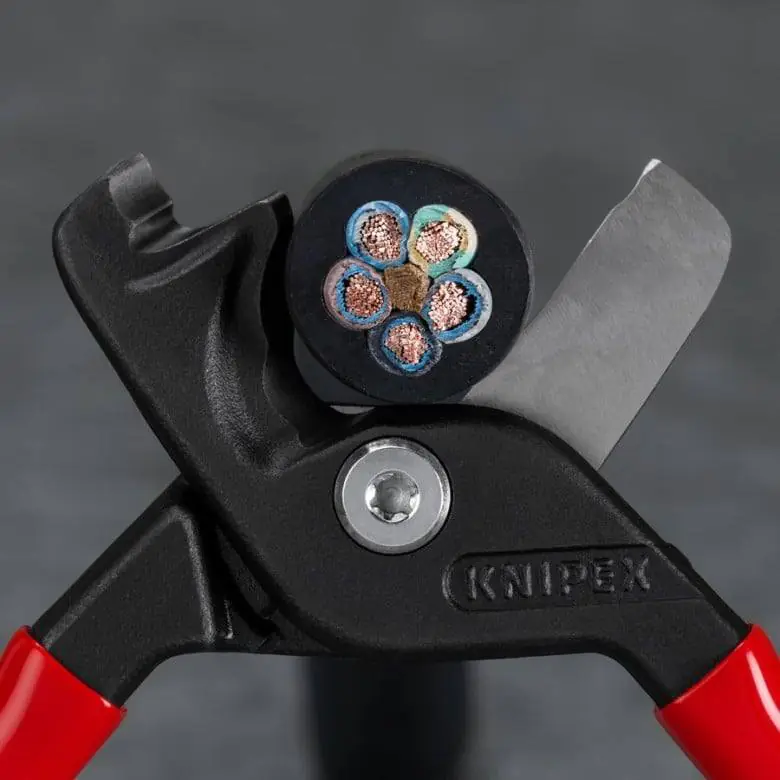

• Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting ("nibbling") of larger cables

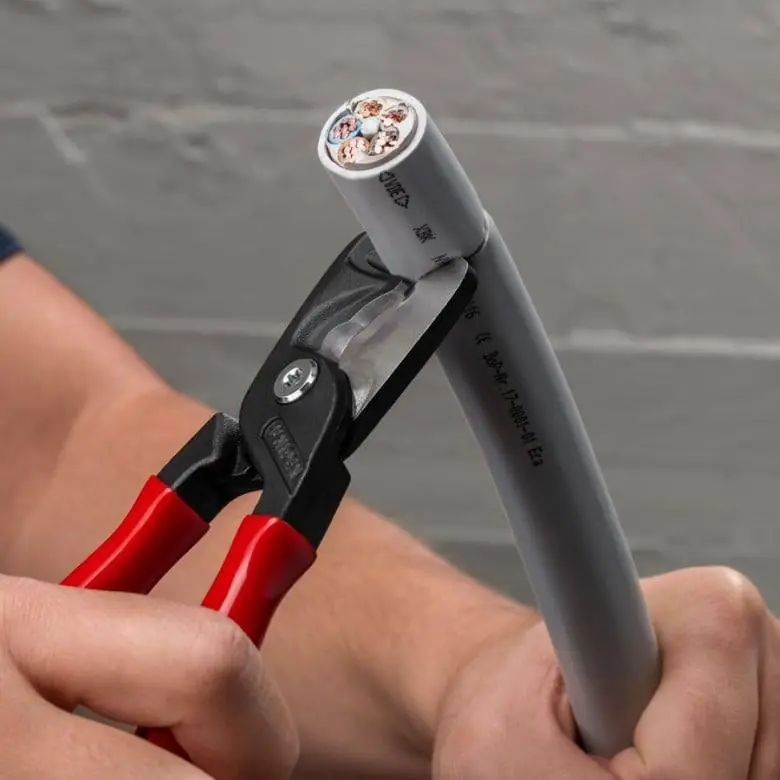

• Easy one- or two-handed operation with minimal handle opening for large cable diameters
• Slim head for better accessibility
• Not suitable for steel-reinforced cables, e.g. ACSR
• Adjustable, high-leverage bolted joint provides precise and smooth cutting
• Pinch guard prevents operators' fingers being pinched
• Laser-hardened cutting edges (approx. 56 HRC)
• High-grade special tool steel; forged; oil-hardened

Product Specification:

• Part Number: 95 11 225
• UPC: 843221029722
• Country of Origin: Germany
• Length: 9"
• Width: 1 3/4"
• Height: 5/8"
• Weight: 0.806 lbs.
• 1000 Volt Insulated: No
• ESD Indicator: No
• Spring Loaded: No
• Material Type: High-grade special tool steel, forged, oil-hardened
• Handle Type: Plastic coating
• Surface Finish: Burnished
• Joint Type: Bolted
• Cutting Capacity - Cu and Al conductor: 29/32"
• Cutting Edge Shape: Shear
• Jaw Length: 1 1/4"
• Jaw Width: 1 1/4"
• Jaw Thickness: 1/2"
• Tip Thickness: 1/4"
• Tip Width: 1"
• Wire Size: Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables)
• Cable Type: Stranded Cables | Fine Stranded Cables | Solid Cable
• Reach: does not contain SVHC
• RoHS: not applicable
